ANSI 150lb cast steel forged gate valve

Product Categories

HEBEI PAWOFUOU VALVE AND PIPE FITTING TECHNOLOGY CO.,LTD.

Contact Now

Name: ANSI 150lb cast steel forged gate valve
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : China

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Pressure : 150LB

Contact Now

ANSI 150lb cast steel forged gate valve

Specifications

1.Production Size:1/4"~2"

2.Pressure:150LB

Standard:

1.Design Standard:ASME/ANSI B16.34,API602

2.Face to Face:ANSI B16.10

3.Flange Standard:ANSI B16.5

4.Testing Standard:API 598

Material of parts:

1.Body: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L

2.Bonnet: A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Disc: A182 F6A,A182 F304/F304L,A182 F316/316L

5.Gasket:PTFE/Graphite

6.Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L

7.Packing:Graphite

Product pictures

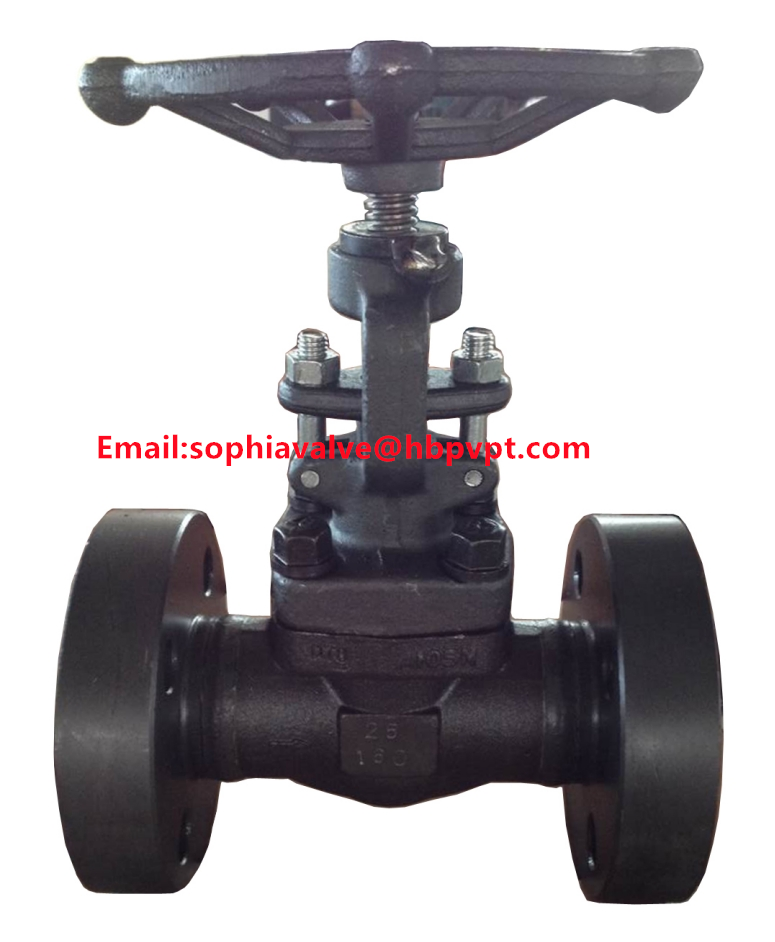

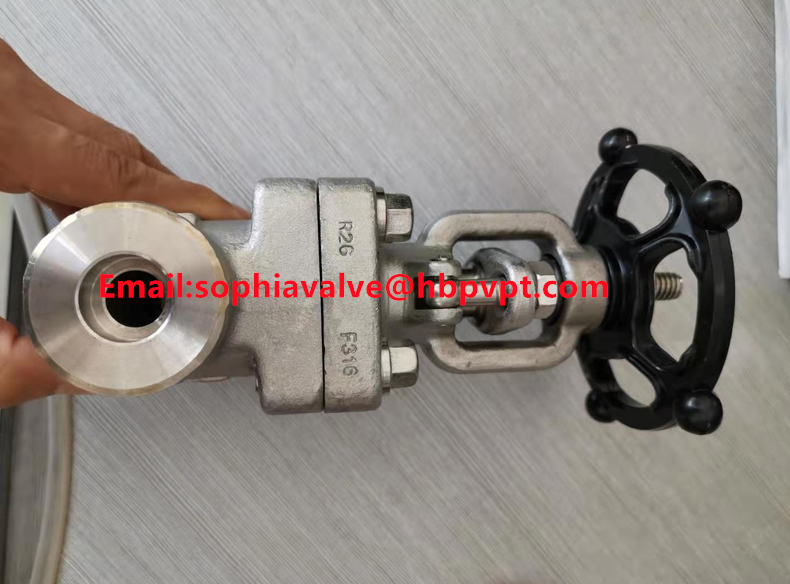

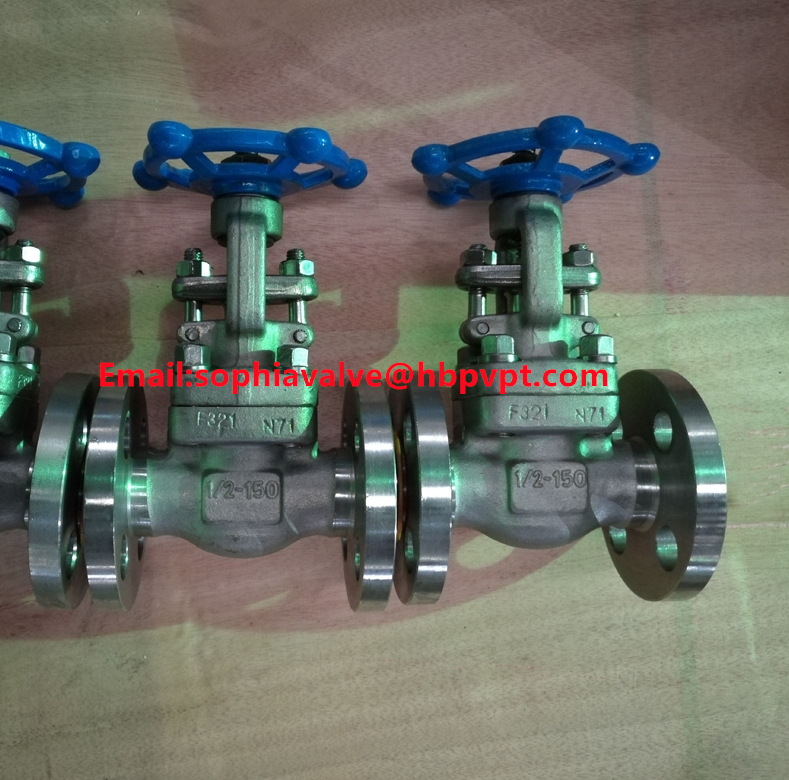

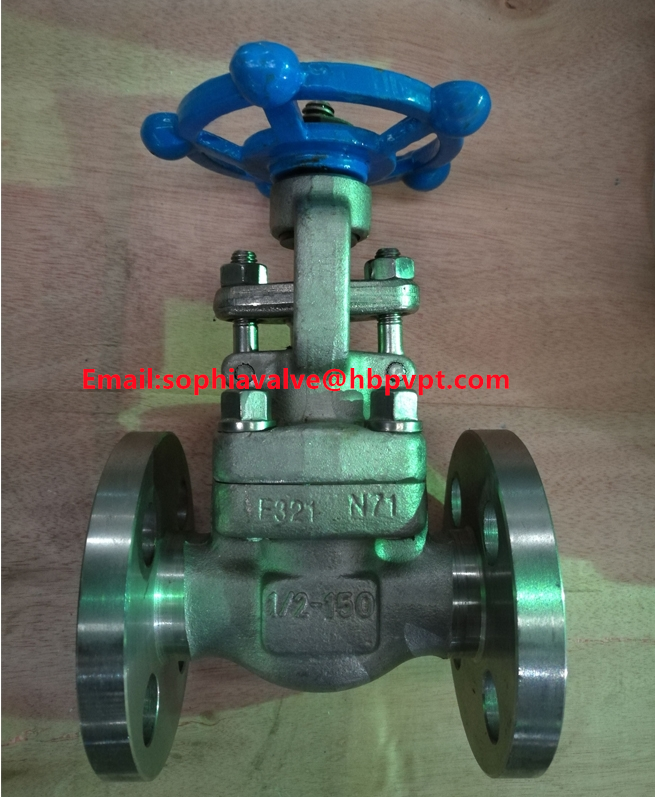

ANSI 150lb cast steel forged gate valve Images
