150lb CF8M stainless steel cast steel gate valve

Product Categories

HEBEI PAWOFUOU VALVE AND PIPE FITTING TECHNOLOGY CO.,LTD.

Contact Now

Name: 150lb CF8M stainless steel cast steel gate valve
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : China

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Pressure : 150LB

Material : CF8M

Contact Now

150lb CF8M stainless steel cast steel gate valve

Specifications

1.Production Size:1 1/2"~20".DN40~DN500

2.Pressure:150LB

3.Design Standard:ASME B16.34,API600,API6D

4.Face to Face:ASME B16.10

5.Flange Standard:ASME B16.5,ASME B16.47

6.Testing Standard:API 598

Main material of parts:

1.Body:CF3,CF3M,CF8,CF8M

2.Bonnet:CF3,CF3M,CF8,CF8M

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass,bronze

5.Disc:CF3,CF3M,CF8,CF8M

6.Packing:Graphite,PTFE

7.Seat:CF3,CF3M,CF8,CF8M

8.Handwheel:ASTM A536 65-45-12

Product show

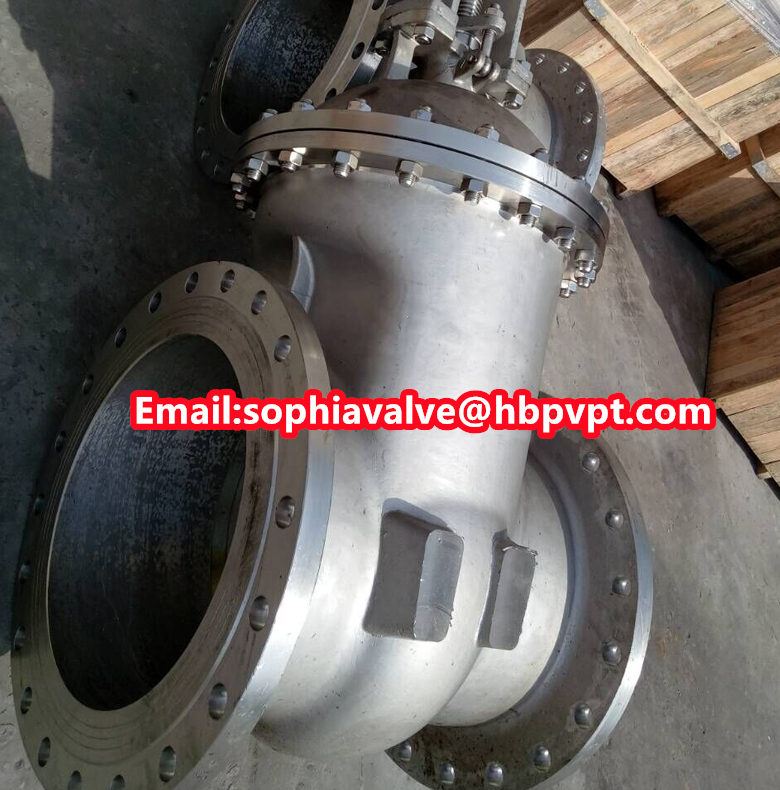

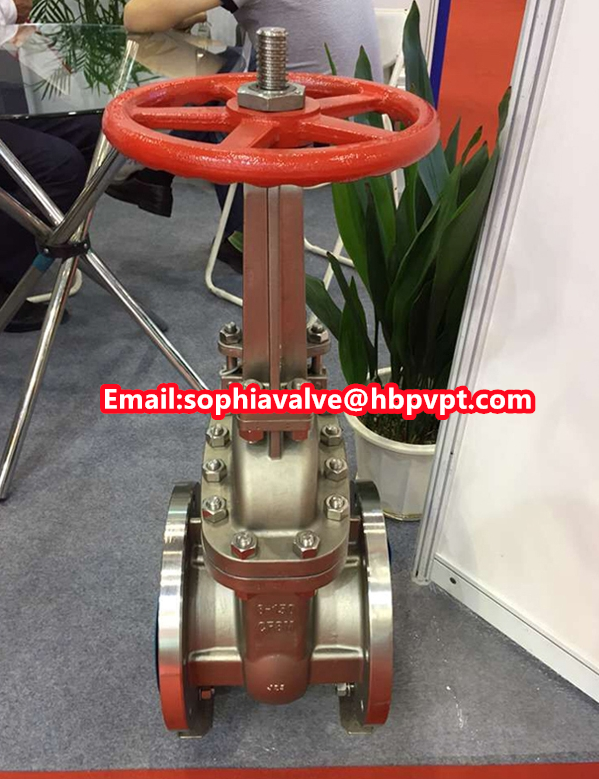

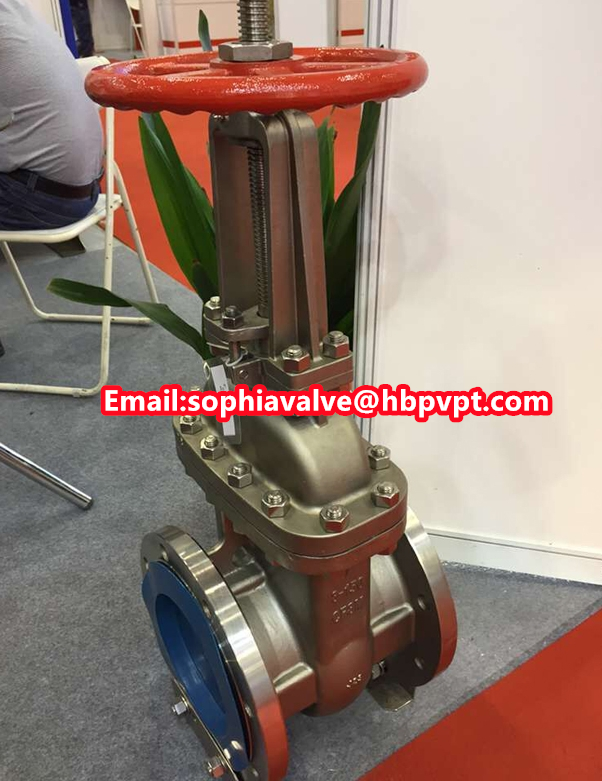

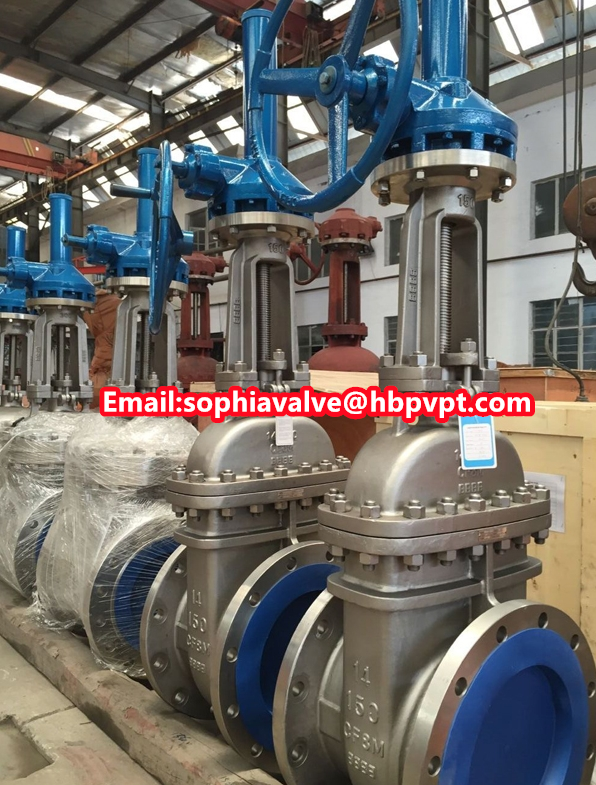

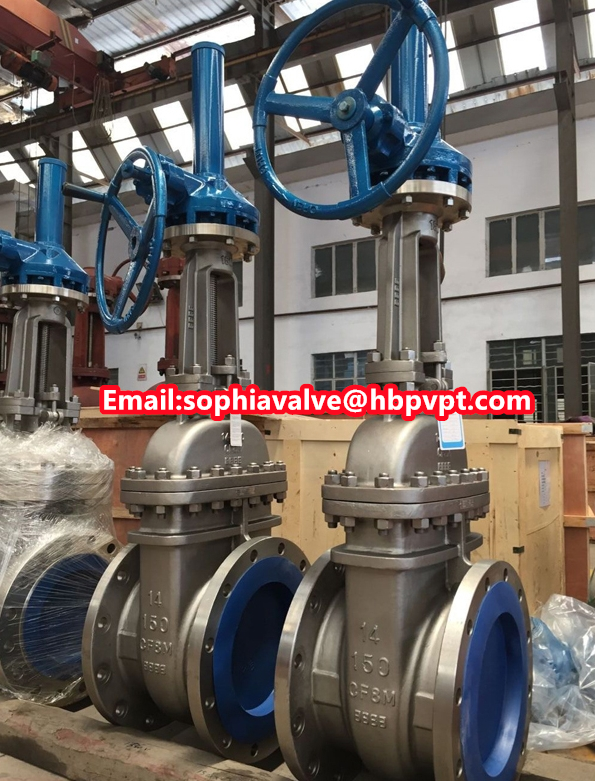

150lb CF8M stainless steel cast steel gate valve Images
