Name: DIN3352 resilient seal gate valve
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : CHINA

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Contact Now

DIN3352 resilient seal gate valve

Specifications

1.Size:DN50-DN1600

2.Pressure range:PN10,PN16,PN25

Standard:

1.Design Standard:DIN3352

2.Face to Face:DIN3202 F4

3.Flange Standard:EN 1092

4.Testing Standard:EN12226

Main Material of parts:

1.Body:GGG45/GGG50

2.Bonnet:GGG45/GGG50

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem Nut:brass

5.Disc:GGG45/GGG50

6.Seat:EPDM/NBR/PTFE

7.Hand wheel:GGG45/GGG50

Product pictures

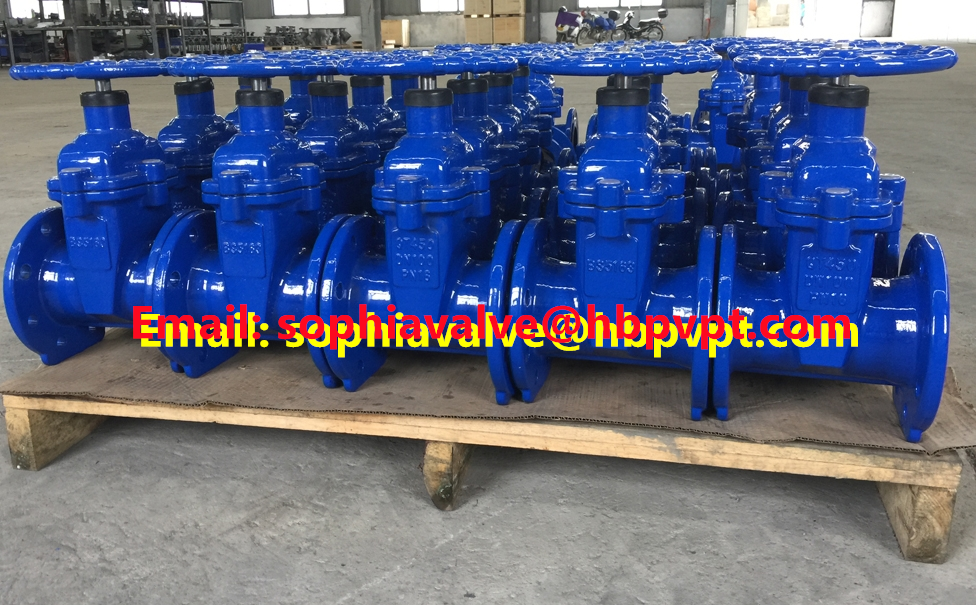

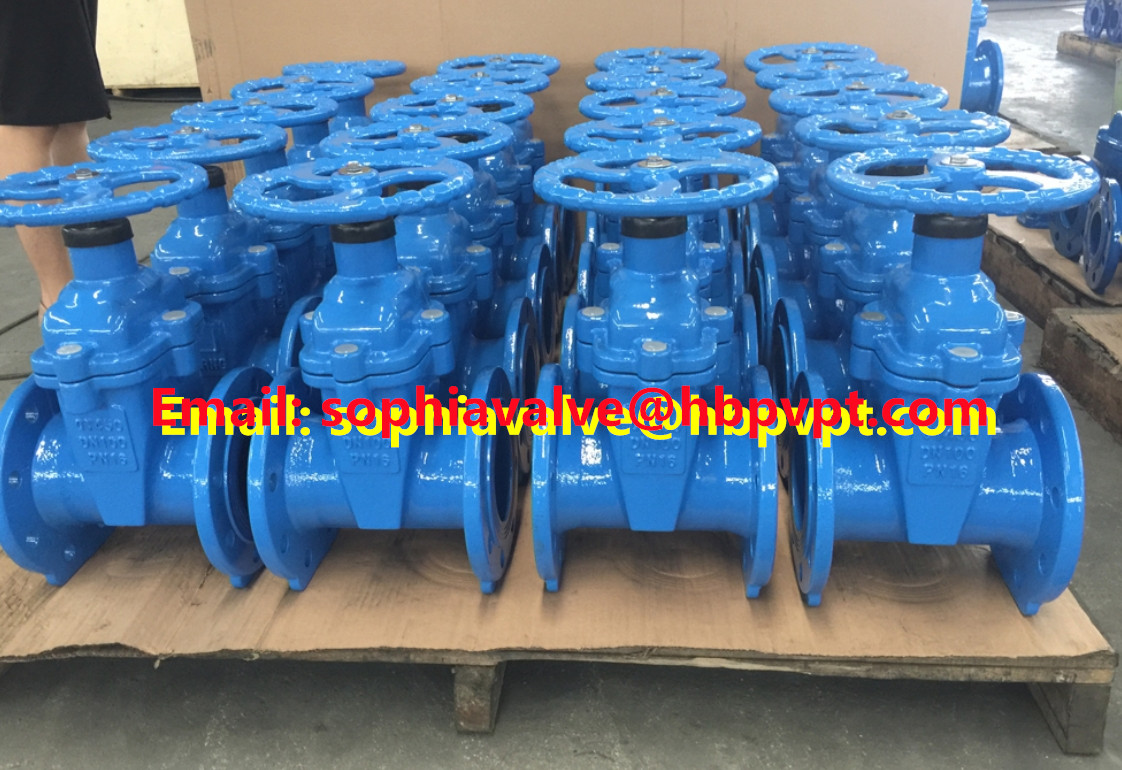

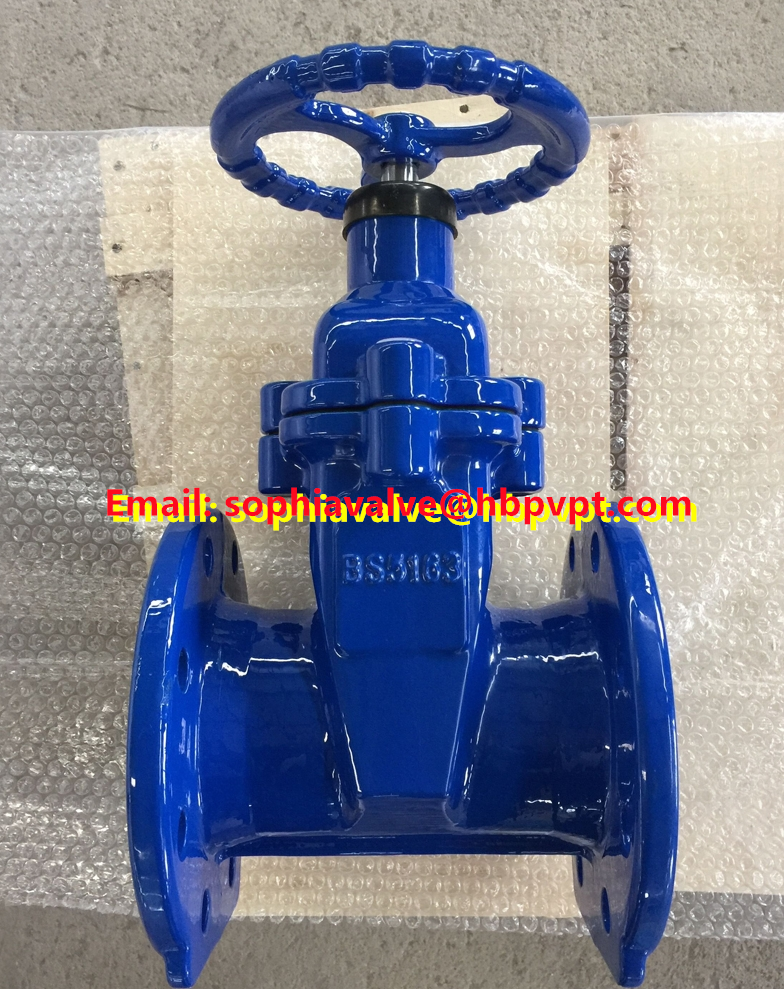

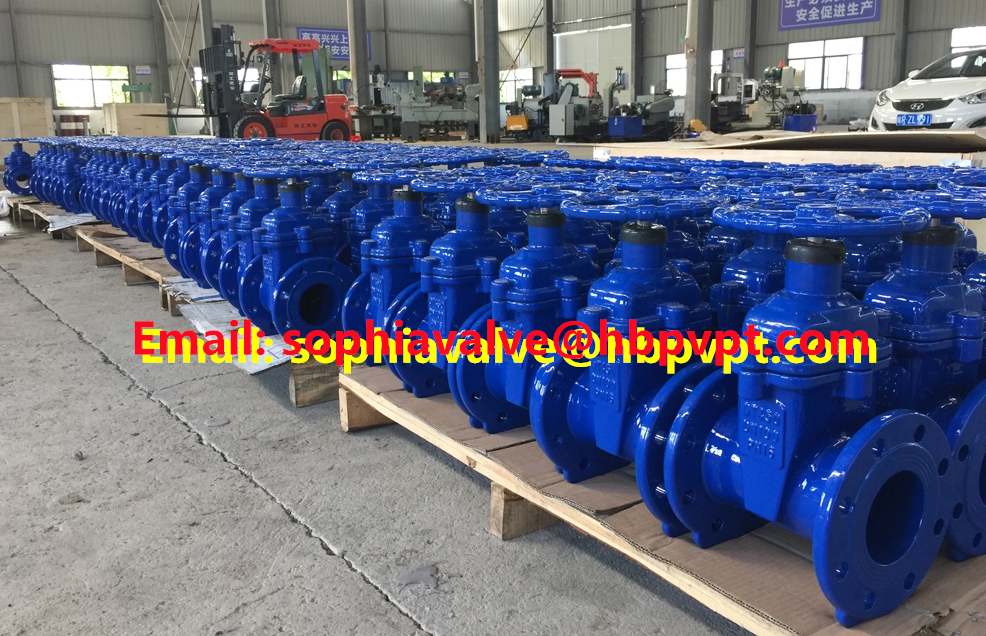

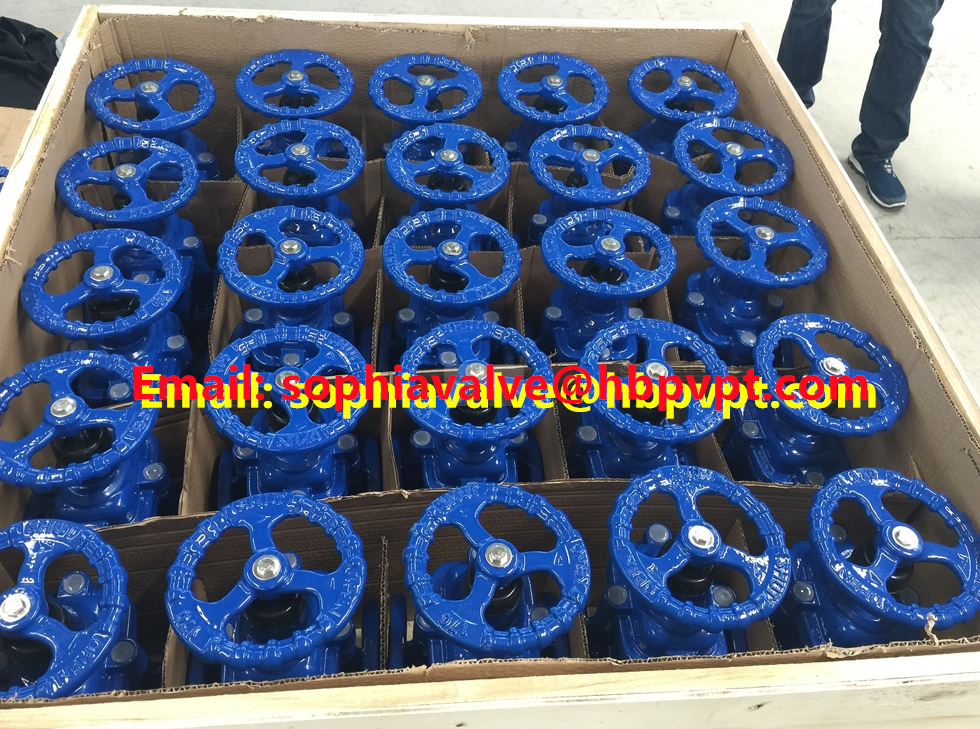

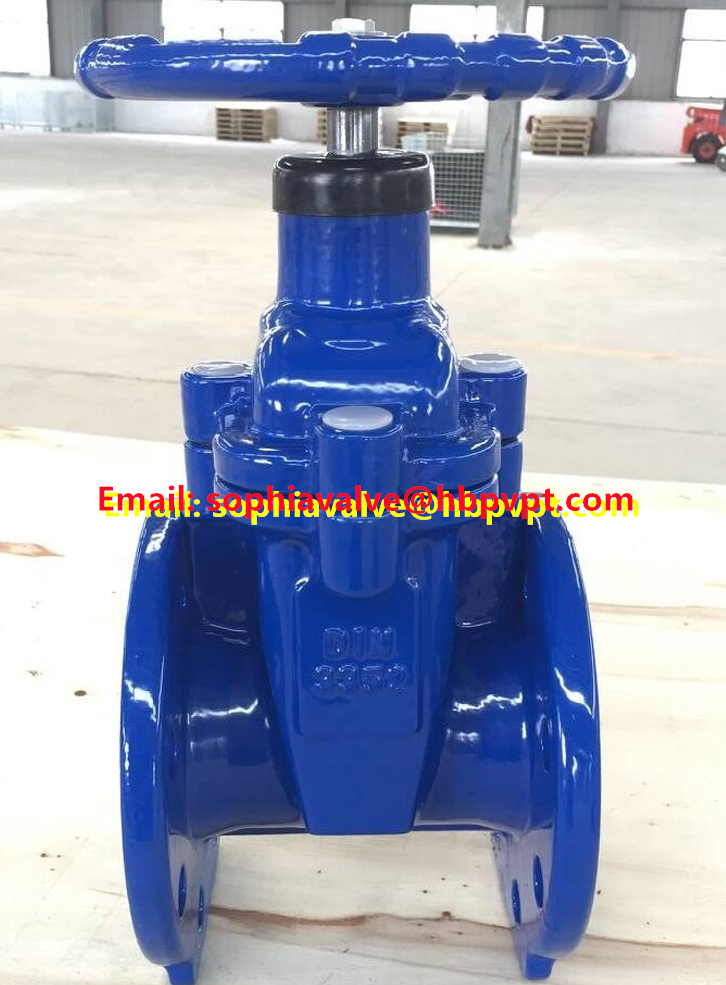

DIN3352 resilient seal gate valve Images
