Name: ANSI 125lb cast iron gate valve factory
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : Xingtai, China

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Pressure : 125LB

Contact Now

ANSI 125lb cast iron gate valve factory

Specifications

1.Size :2”-40” DN50-DN1000mm

2.Pressure :125LB,150LB

3.Design standard:MSS SP-70

4.Face to face:ANSI B16.10

5.Flange standard:ANSI B16.5

6.Testing standard:MSS SP-70,API 598

Main materials of parts:

1.Body:ASTM A126B

2.Bonnet:ASTM A126B

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Stem nut:brass

5.Seat:Bronze B62/Brass

6.Disc:ASTM A126B

7.Gasket:Graphite

8.Packing:Graphite

9.Handwheel:ASTM A536 65-45-12

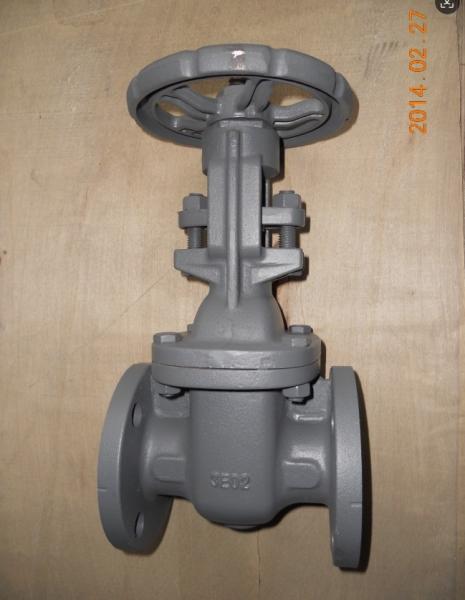

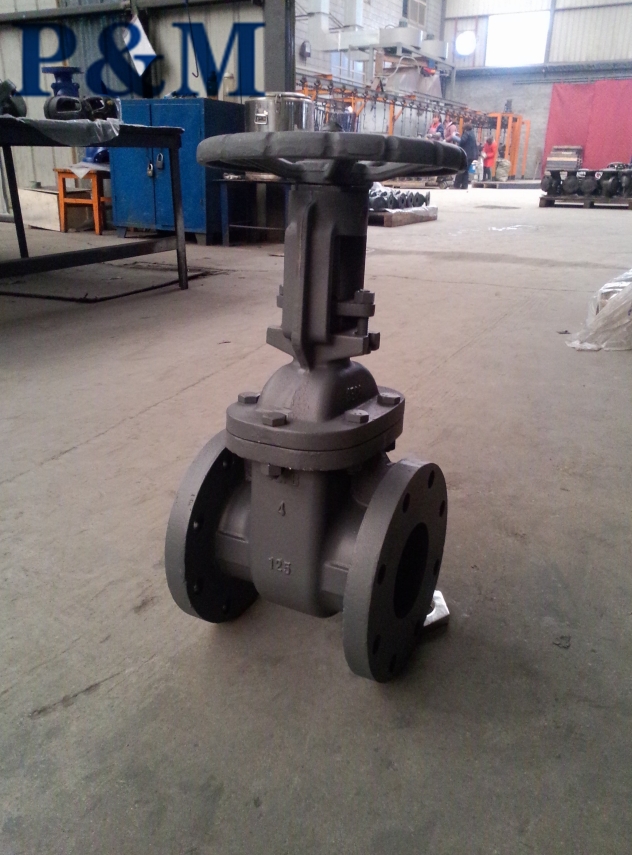

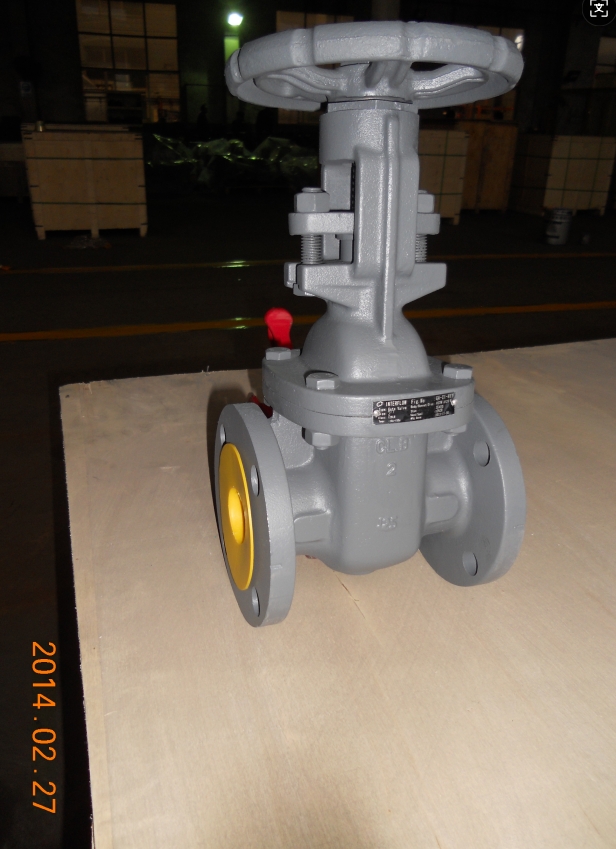

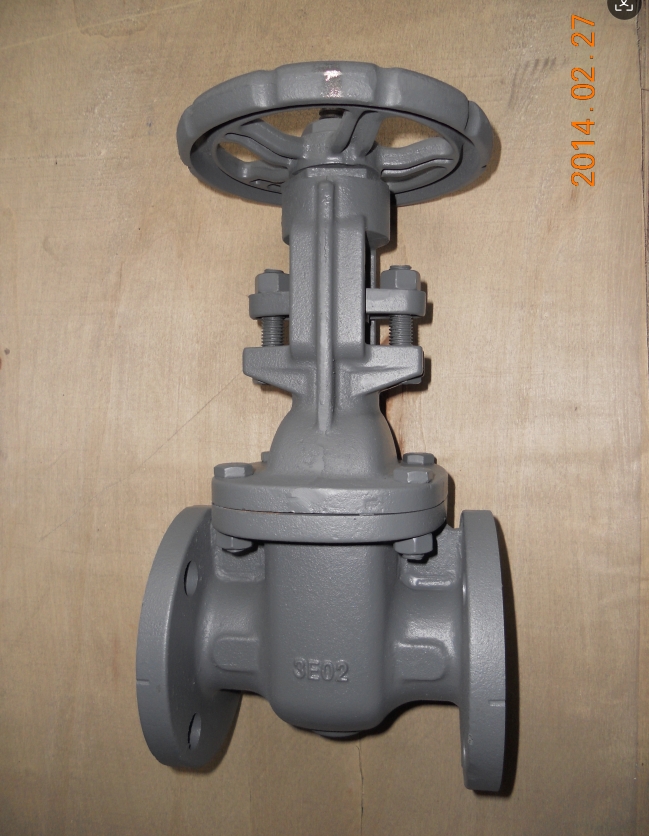

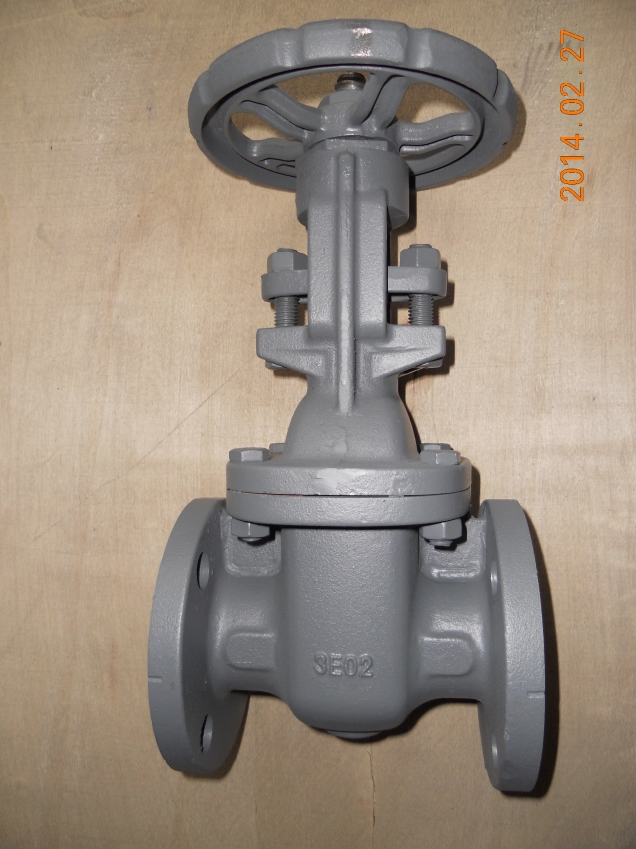

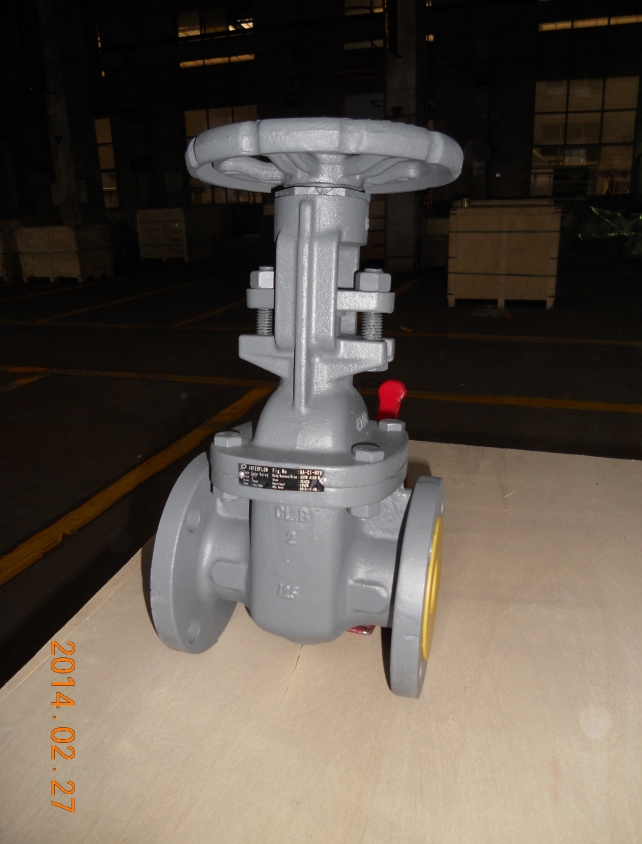

Product show

ANSI 125lb cast iron gate valve factory
