DIN ANSI ball type flange end check valve

Brand Name : PVPT

Place of Origin : China

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Standard : DIN ANSI

Contact Now

DIN ANSI ball type flange end check valve

Product specifications

1.Production Size:1 1/2”-20” DN40-DN500mm

2.Pressure range:PN10,PN16,125LB,150LB

3.Face to Face:DIN 3202 F6

4.Flange Standard: EN1092-2/BS4504 PN16,ASME B16.1

5.Testing Standard:EN12266

Main material of parts:

1.Body:Ductile Iron

2.Bonnet: Ductile Iron

3.Ball:ABS/GGG50/NBR+EPDM

4.Sealing Ring:NBR/EPDM

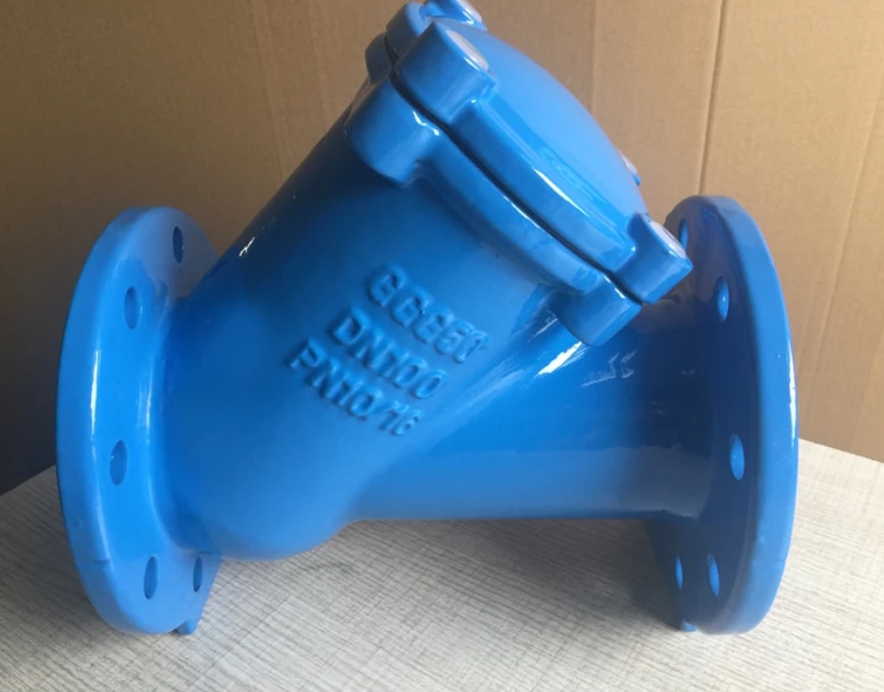

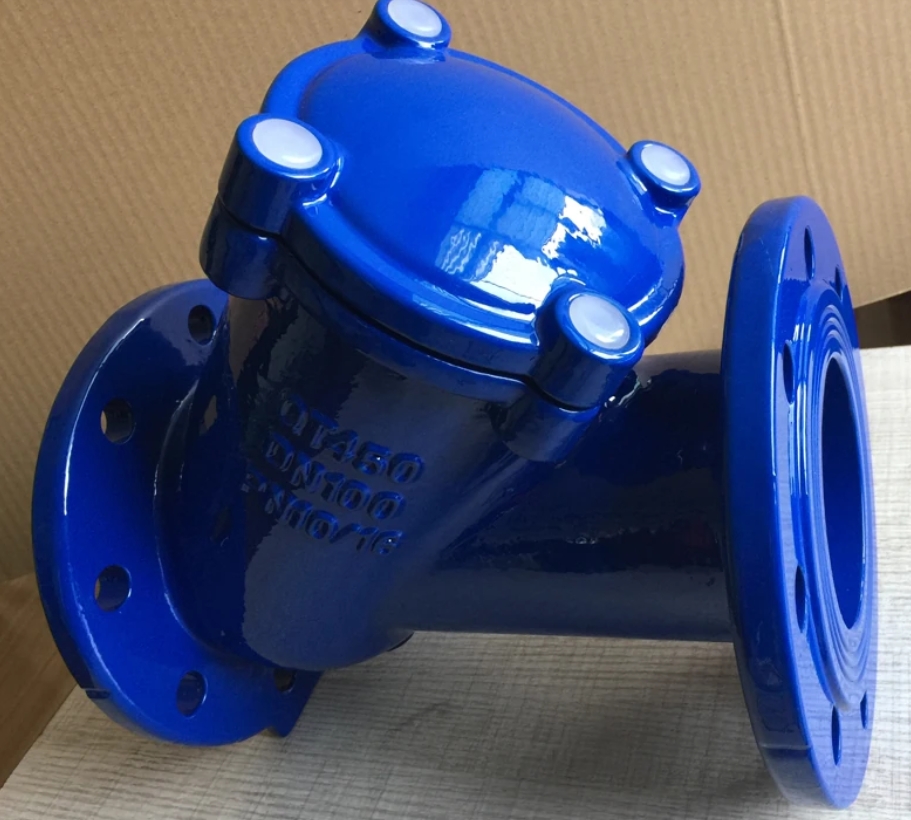

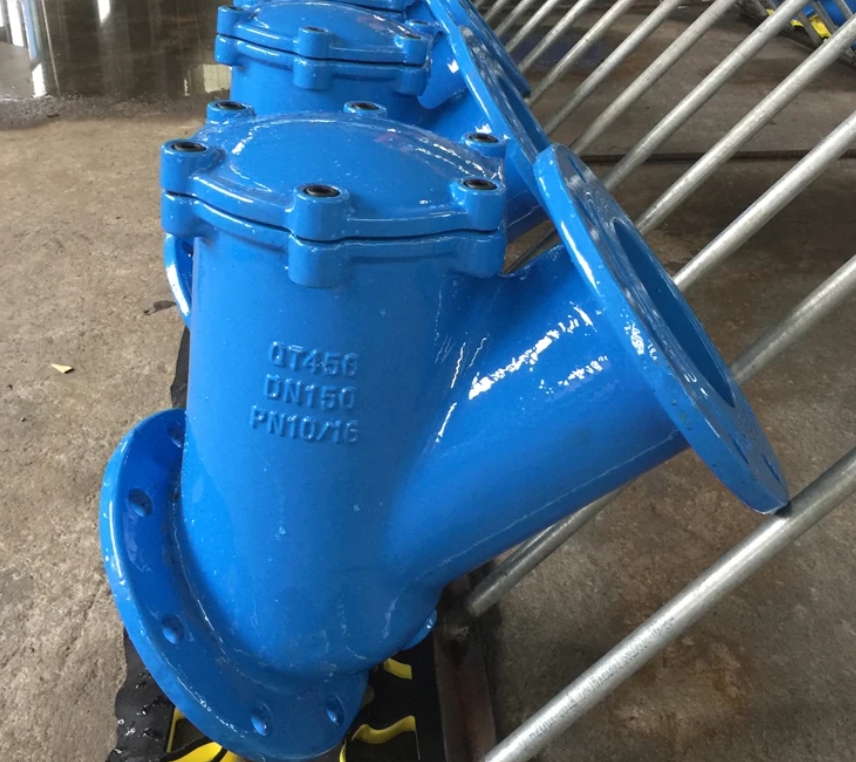

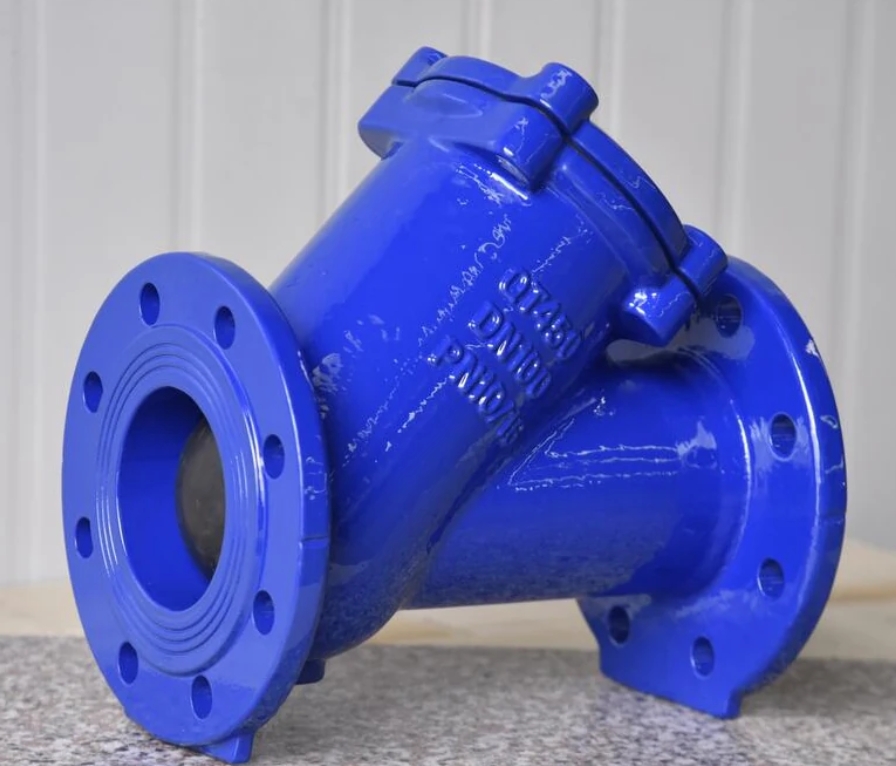

Pictures of ball type check valve

DIN ANSI ball type flange end check valveDIN ANSI ball type flange end check valveDIN ANSI ball type flange end check valveDIN ANSI ball type flange end check valveDIN ANSI ball type flange end check valve
