GGG40 PN16 F4 metal seal gate valve

Product Categories

HEBEI PAWOFUOU VALVE AND PIPE FITTING TECHNOLOGY CO.,LTD.

Contact Now

Name: GGG40 PN16 F4 metal seal gate valve
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : China

MOQ : 1 pc

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Body material : GGG40

Face to face : F4

Contact Now

GGG40 PN16 F4 metal seal gate valve

Specifications

1.Production Size:1 1/2”-24” DN40-DN600mm

2.Pressure:PN16

Standard:

1.Design Standard:DIN 3352

2.Face to Face:DIN 3202 F4

3.Flange Standard:EN 1092-2PN10,PN16

4.Testing Standard:ISO 5208

Main material of parts:

1.Body:EN-GJL-250,GG25,GGG40,GGG50

2.Bonnet: EN-GJL-250,GG25,GGG40,GGG50

3.Stem:2Cr13/SS304/SS316/Carbon Steel

4.Disc:EN-GJL-250

5.Seat:Bronze B62/Brass

6.Bonnet Gasket:Graphite

7.Packing:Graphite

8.Handwheel:ASTM A536 65-45-12

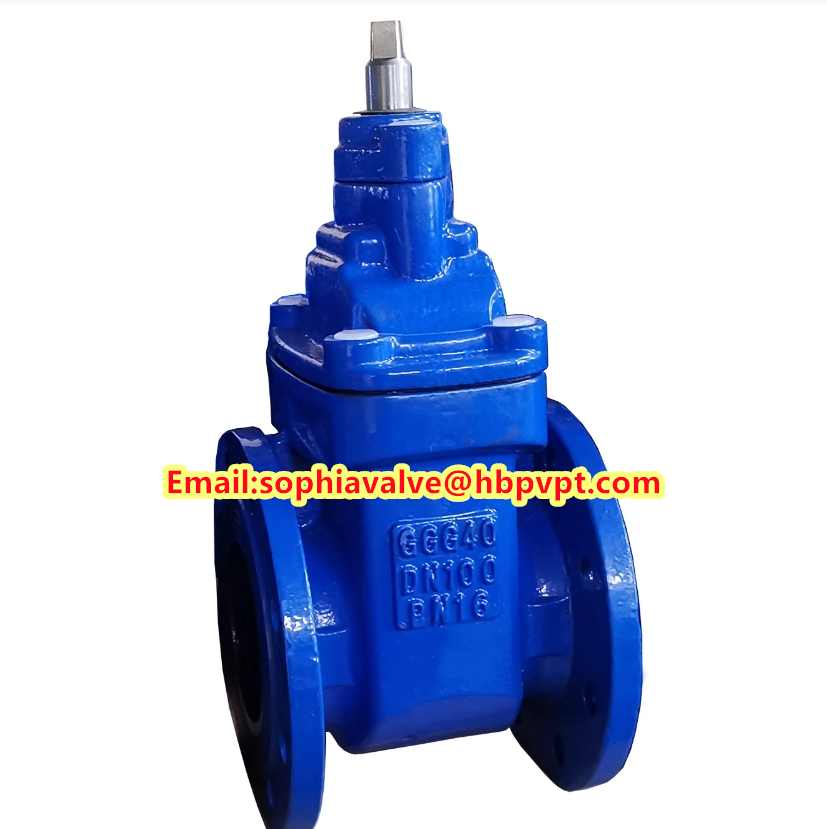

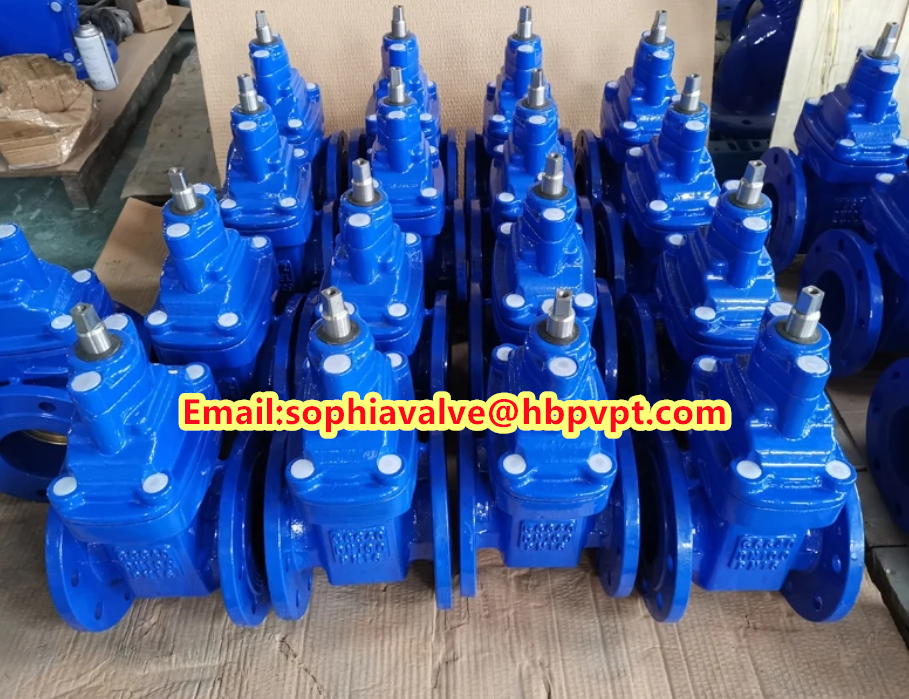

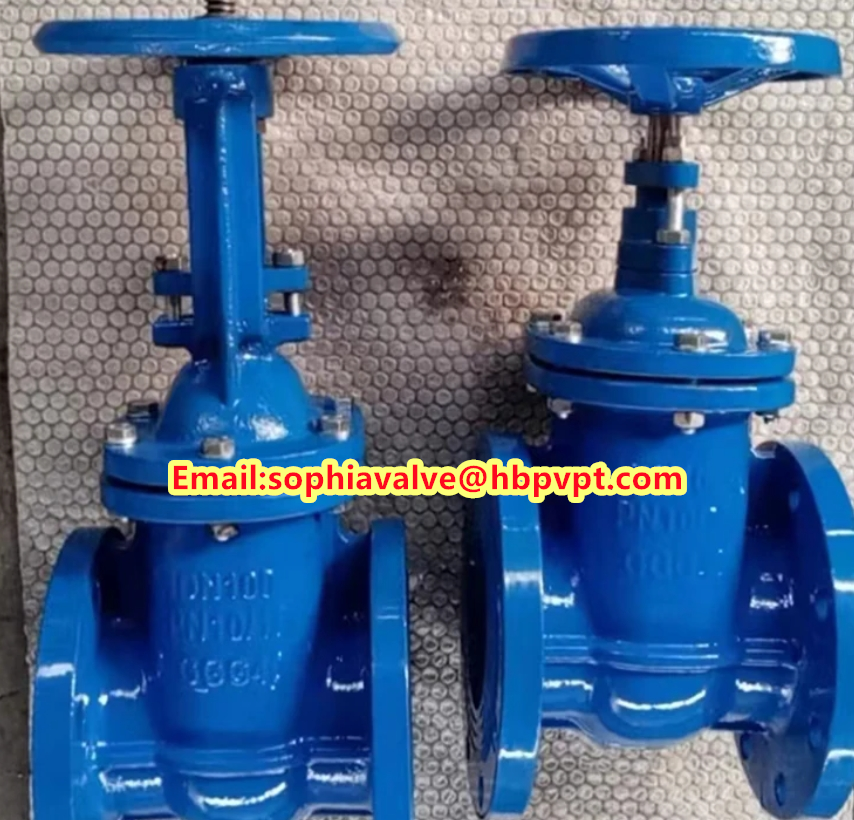

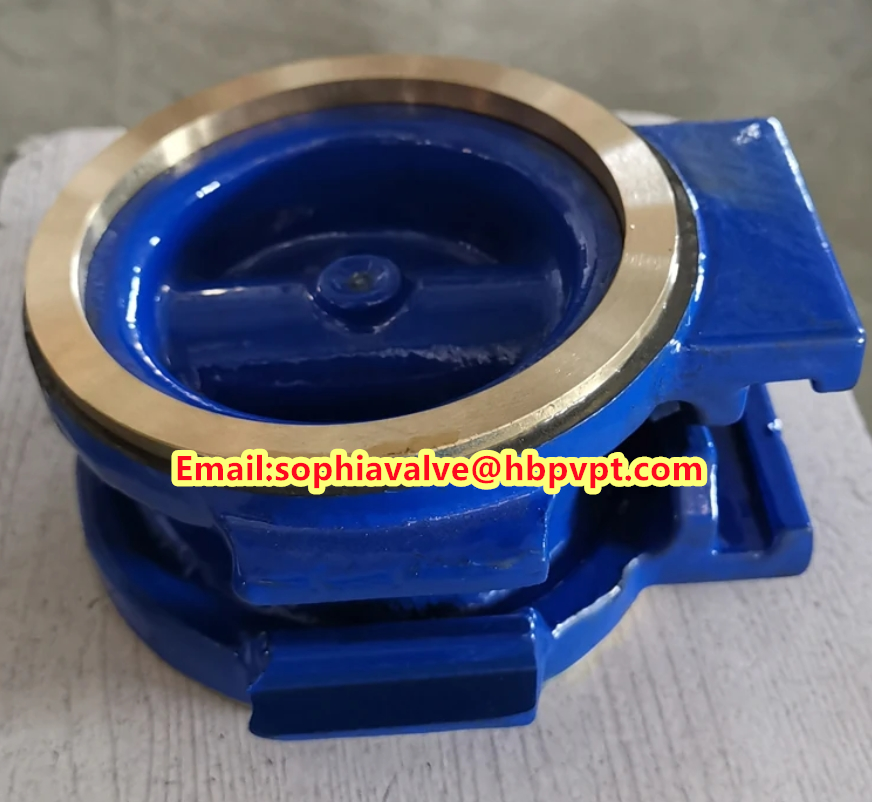

Product show

GGG40 PN16 F4 metal seal gate valve

GGG40 PN16 F4 metal seal gate valve Images
